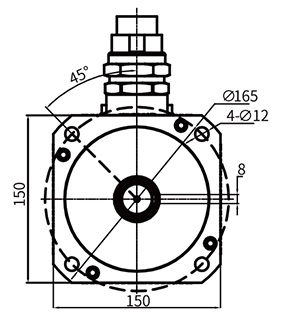

| 电机型号： | L(mm) | 电机型号： | L(mm) |
| 150ST-□100XX-EX-XXV | 249 | 150ST-□100XXB-EX-XXV | 289 |
| 150ST-□120XX-EX-XXV | 259 | 150ST-□120XXB-EX-XXV | 299 |
| 150ST-□150XX-EX-XXV | 274 | 150ST-□150XXB-EX-XXV | 314 |
| 150ST-□190XX-EX-XXV | 299 | 150ST-□190XXB-EX-XXV | 339 |
| 150ST-□240XX-EX-XXV | 324 | 150ST-□240XXB-EX-XXV | 364 |
| 150ST-□280XX-EX-XXV | 349 | 150ST-□280XXB-EX-XXV | 389 |
| 150ST-□100XX-EX-XXV | 224 | 150ST-□100XXB-EX-XXXV | 259 |
| 150ST-□120XX-EX-XXXV | 234 | 150ST-□120XXB-EX-XXXV | 269 |
| 150ST-□150XX-EX-XXXV | 249 | 150ST-□150XXB-EX-XXXV | 284 |
| 150ST-□190XX-EX-XXXV | 274 | 150ST-□190XXB-EX-XXXV | 309 |
| 150ST-□240XX-EX-XXXV | 299 | 150ST-□240XXB-EX-XXXV | 334 |
| 150ST-□280XX-EX-XXXV | 324 | 150ST-□280XXB-EX-XXXV | 359 |
| DC24V | DC48V | ||||||||
| 电机型号 | 150ST-10030-EX-24V | 150ST-12025-EX-24V | 150ST-15030-EX-24V | 150ST-10030-EX-48V | 150ST-12030-EX-48V | 150ST-15030-EX-48V | 150ST-19030-EX-48V | 150ST-24025-EX-48V | 150ST-28030-EX-48V |
| 额定功率(KW) | 3 | 3 | 4.5 | 3 | 3.7 | 4.5 | 6 | 6.2 | 8.5 |
| 额定电流(A) | 147.1 | 147.1 | 220.6 | 73.5 | 90.7 | 110.3 | 147.1 | 152.0 | 208.3 |
| 额定转速(rpm) | 3000 | 2500 | 3000 | 2500 | 3000 | 3000 | 3000 | 2500 | 3000 |
| 最高转速(rpm) | 3600 | 3000 | 3600 | 3600 | 3600 | 3600 | 3600 | 3000 | 3600 |
| 额定扭矩(Nm) | 10 | 12 | 15 | 10 | 12 | 15 | 19 | 24 | 28 |
| 峰值扭矩(Nm) | 30 | 36 | 45 | 30 | 36 | 45 | 57 | 72 | 84 |
| 转子惯量(kg.cm2) | 24.4 | 29.3 | 36.6 | 24.4 | 29.3 | 36.6 | 48.7 | 61 | 73.2 |
| AC220V | ||||||
| 电机型号 | 150ST-10030-EX | 150ST-12030-EX | 150ST-15030-EX | 150ST-19030-EX | 150ST-24030-EX | 150ST-28030-EX |
| 额定功率(KW) | 3 | 3.7 | 4.5 | 6 | 7.5 | 8.5 |
| 额定电流(A) | 12.1 | 14.9 | 18.1 | 24.2 | 30.2 | 34.3 |
| 额定转速(rpm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| 最高转速(rpm) | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 |
| 额定扭矩(Nm) | 10 | 12 | 15 | 19 | 24 | 28 |
| 峰值扭矩(Nm) | 30 | 36 | 45 | 57 | 72 | 84 |
| 转子惯量(kg.cm2) | 24.4 | 29.3 | 36.6 | 48.7 | 61 | 73.2 |
注：电机接口、电压、转速可按客户要求定制
